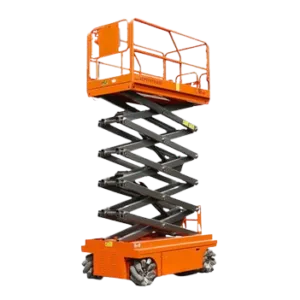

Self Propelled Scissor Lifts

Product / Stacker

Model Number : VI-SL-SP-5.8, VI-SL-SP-6N, VI-SL-SP-8N, VI-SL-SP-8, VI-SL-SP-10, VI-SL-SP-11.8

HSN Code : 84289090

Stock: In-Stock

Main Specs : Hydraulic Motor Drive, extension platform, AC line to platform, Airline to platform, Buzzer + Alarm

TECHNICAL SPECIFICATIONS

Model		VI-SL-M-0.24-3 DC	VI-SL-M-0.24-3.9 DC
S.W.L.	kg	240	240
Platform Height Max.	mtr	3	3.9
Stowed Length	mtr	1.3	1.3
Stowed Width	mtr	0.76	0.76
Stowed Height (Rails Up)	mtr	1.83	1.92
Stowed Height (Rails Down)	mtr	1.43	1.52
Platform Size (L*W)	mtr	1.15*0.07	1.15*0.07
Wheelbase	mtr	0.99	0.99
Max. Workers Number		1	1
Ground Clearance	mtr	0.06	0.06
Raise/Lower Time	sec	34/20	34/21
Tire	in	6	6
Lifting Motor	v/kh	12/0.8	12/0.8
Power Source	V/Ah	12/85 V/Ah	12/85 V/Ah
Charger	V/A	15 V/A	15 V/A
Weight		482	516

MODEL		VI-SL-SP-5.8	VI-SL-SP-6N	VI-SL-SP-8N	VI-SL-SP-8	VI-SL-SP-10	VI-SL-SP-12
S.W.L.	kg	230	230	230	450	320	320
S.W.L. On Extension	kg	113	113	113	113	113	113
Max Workers Number		2	2	2	2	2	2
Max. Working Height	m	7.8	8	10	10	12	13.8
Max. Platform Height	m	5.8	6	8	8	10	11.8
Overall Length	m	1.81	2.43	2.43	2.43	2.43	2.43
Overall Width	m	0.76	0.81	0.81	1.15	1.15	1.15
Overall Height	m	2.16	2.18	2.3	2.31	2.42	2.55
(Rails Up)
Overall Height	m	1.82	1.85	1.87	1.76	1.91	2.03
(Rails Down)
Platform Size (L*W)	m	1.67*0.74	2.27*0.81	2.27*0.81	2.27*1.12	2.27*1.12	2.27*1.12
Platform Extension Size	m	0.9	0.9	0.9	0.9	0.9	0.9
Ground Clearance (Stowed)	m	0.09	0.1	0.1	0.1	0.1	0.1
Ground Clearance (Raised)	m	0.019	0.019	0.019	0.019	0.019	0.019
Wheelbase	m	1.36	1.87	1.87	1.87	1.87	1.87
Turning Radius (Inside)	m	0	0	0	0	0	0
Turning Radius (Outside)	percent	1.64	2.1	2.1	2.2	2.2	2.2
Lift/Drive Motor	kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw
Travel Speed (Stowed)	km/h	3	3	3	3	3	3
Travel Speed (Raised)	km/h	1	1	1	1	1	1
Raise/Lower Time	sec	18/22	35/25	40/30	40/30	60/40	70/45
Power Source	v/Ah	4*6/210	4*6/225	4*6/225	4*6/225	4*6/225	4*6/225
Charger	v/A	24/30	24/30	24/30	24/30	24/30	24/30
Gradability	%	25	25	25	25	25	25
Max. Working Slope	Degree	1.5/3	2-Mar	1.5/3	2-Mar	2-Mar	1.5/3
Tyre Size	ø	305*100	380*129	380*129	380*129	380*129	380*129
Weight	kg	1400	1945	2100	2175	2468	2830

EQUIPMENTS

Self-propelled Scissor Lift Features

STANDARD FEATURES

1. Self-Lock Gate on Platform
2. Non-marking Tyre
3. Automatic Brake System
4. Emergency Lowering System

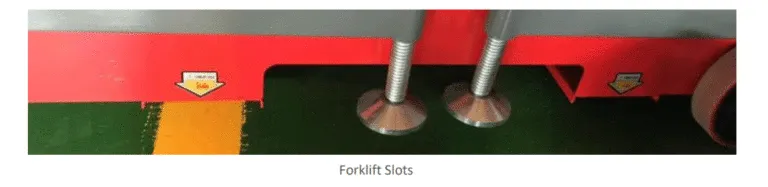

5. Emergency Stop Button Horn 6. Forklift Pockets
7. Charging Indicator
8. Charger Protection 2WD
9. Safety Brackets
10. Folding Guardrails
11. Powder Coating Painting Hour Meter
12. Heavy Towing Handle
13. Detachable / Foldable Fence
14. Maintenance Support Bar

OPTIONAL FEATURES

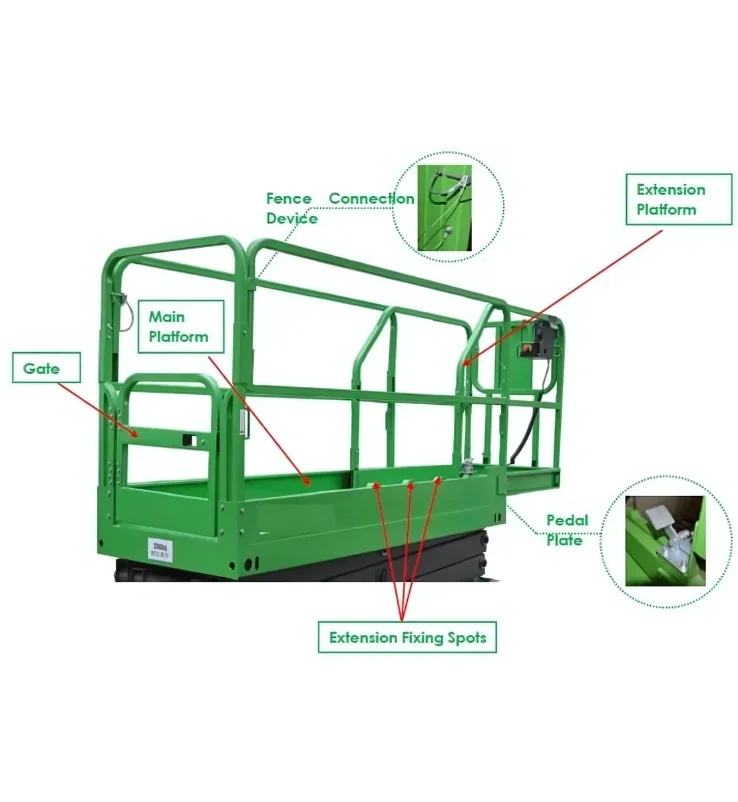

1. Platform Extension
2. AC Power to Platform
3. Working Light on the Platform
4. On-board Diagnostic System
5. Cylinder Holding Valve Horn
6. All Motion Alarm
7. Flashing Beacon
8. Tilt Sensor with Alarm
