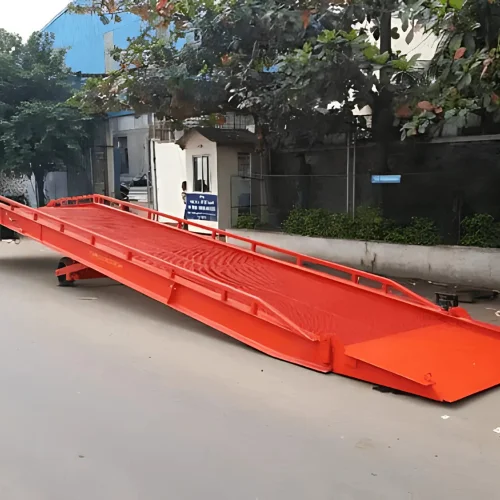

Mobile Dock Ramp
A mobile ramp is a portable ramp used to bridge the gap between a loading dock or a ground level and a truck bed or other elevated surface. It is designed to provide a smooth and safe transition for material handling equipment such as forklifts, pallet jacks, and carts.
The mobile ramp can be made of various materials, such as steel, aluminum, or composite materials, and is equipped with features such as anti-slip surfaces, safety chains, and safety curbs to prevent accidents and injuries.
One of the key benefits of the mobile ramp is its portability. It can be easily moved and positioned to different locations, making it ideal for businesses with changing needs or limited loading dock space. Additionally, the mobile ramp can be quickly set up and taken down, saving time and improving efficiency.
The mobile ramp is also available in different sizes and capacities to suit different applications and environments. It can be customized with different features and options such as adjustable legs, handrails, and wheel chocks to meet specific needs and requirements.
The mobile ramp is easy to operate and maintain. It can be moved with a forklift or other material handling equipment and requires minimal maintenance and inspection to ensure it remains in good condition and can continue to provide reliable and safe operation.
Overall, the mobile ramp is a versatile and efficient solution for bridging the gap between a loading dock or ground level and a truck bed or other elevated surface. Its portability and customization options make it an excellent choice for businesses looking to improve their material handling operations.
FEATURES
- Mobile dock ramp can be applied on sundry occasions such as the position in the non-loading platform, not fixed load and unload location, narrow load and unload ground and so on.
- Mobile forklift truck and other transporting facilities can enter into the truck to carry on loading and unloading directly.
- Provided with manual hydraulic controls.
- Tires can be folded to lift off when the dock is in use and let down when you need to move the mobile dock.
- Easy and convenient to move and change the working location of the mobile dock by the manpower.
VIMAL mobile dock ramp with 10000 kgs capacity is an ergonomically designed for loading and unloading of goods.

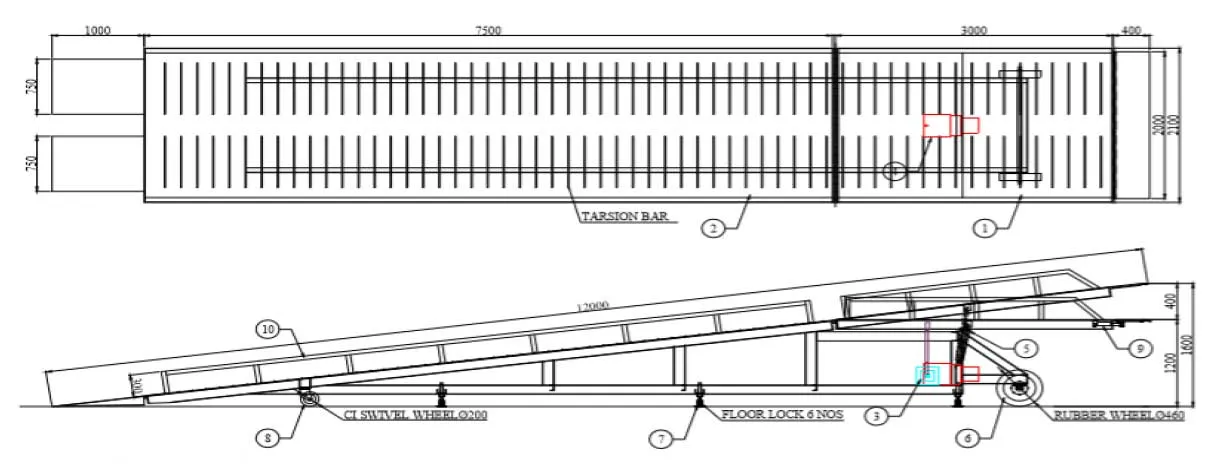

TECHNICAL SPECIFICATIONS
- 1. Movable Ramp
- 2. Fix Ramp
- 3. Hand Pump
- 4. AC Motor
- 5. Hydraulic Lift Cylinder
- 6. Rubber Tyre Wheel
- 7. Floor Lock
- 9. CI Swivel Wheel
- 9. Flap Cylinder
- 10. Railing
| Model No. | VI-MRAMP-10 Manual | |
|---|---|---|
| Capacity | kg | 10000 |
| Platform Size | ||
| A | mm | 8102 |
| B | mm | 2220 |
| C | mm | 800 |
| D | mm | 320 |
| E | mm | 11500 |
| F | mm | 1879 |
| G | mm | 2000 |
| H | mm | 1200 |
| I | mm | 1700 |
| Distance from the Centre of Wheel | mm | 7018 |
- 1. Movable Ramp
- 2. Fix Ramp
- 3. Hand Pump
- 4. AC Motor
- 5. Hydraulic Lift Cylinder
