Hydraulic Goods Lift
A hydraulic goods lift, also known as a freight elevator or cargo lift, is a type of vertical lift used to transport goods and materials between different levels of a building or facility. It is designed to handle heavy loads and can be customized to fit specific needs and requirements.
The hydraulic goods lift is operated by a hydraulic system, which controls the movement of the lift platform or car. The platform or car is typically made of reinforced steel and is equipped with safety features such as gates, sensors, and emergency brakes to prevent accidents and injuries.
One of the key benefits of the hydraulic goods lift is its ability to handle heavy loads with ease. It can be customized with different sizes and capacities to suit different applications and environments and can be designed to lift goods and materials to multiple levels.
The hydraulic goods lift is also available in different configurations, such as single mast, dual mast, or four-post, to fit specific space and height requirements. It can be installed both indoors and outdoors and can be customized with different features and options such as weather enclosures, remote controls, and interlocks to meet specific needs and requirements.
The hydraulic goods lift is also easy to operate and maintain. It can be operated with a push button or a remote control, and requires regular maintenance and inspection to ensure it remains in good condition and can continue to provide reliable and safe operation.
Overall, the hydraulic goods lift is a reliable and efficient solution for transporting heavy goods and materials between different levels of a building or facility. Its customization options and safety features make it an excellent choice for businesses looking to improve their material handling operations.
A Hydraulic Goods Lift is a mechanical device used for transporting heavy loads vertically between floors in industrial or commercial buildings. Powered by a hydraulic system, it offers a reliable and efficient solution for material handling in warehouses, factories, logistics centers, and more.

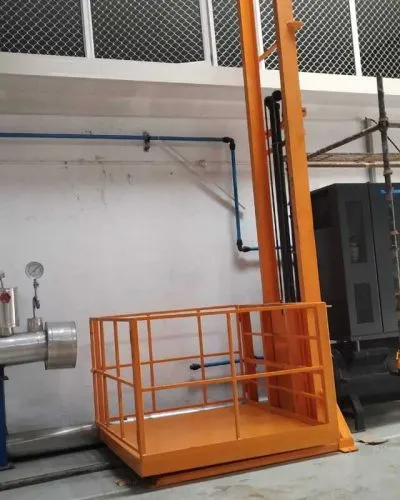

| Model | VI-GL-HSM | |
|---|---|---|
| Capacity | kg | 1000 |
| Platform Size (W*L) | mm | 1500*1400 |
| Minimum Space for Lift Accomodation | mm | 1850*1750 |
| Mast | Single | |
| Min. Height (Can be flushed in pit or truck level | mm | 300 |
| Lift Height – 1st Stage from ground | mm | 4600 |
| Power Pack | Hydraulic AC | |
| Lift/Lower Mode | AC Operated Hydraulic | |
| Levels | G+1 | |
| Entry/Exit | Single Side (opp. Mast) | |
| Lip | Optional at extra cost | |
| Control Panel | CP at bottom & Top- stages | |
| Control Panel – Auto Mode | Manual optional, Extra cost – auto | |
| AC Motor for Powerpack | 3Ph, 3HP | |
| Hydraulics | Safety Valve, Pressure Relief Valve, Control Valve, Solenoid Valve, Pressure Guage, Oil Level Indicator, Monoblock, Brether, Pump | |
| Platform Doors, Side Shields | 2 Side, 900 mm rails, one swing gaet with mechnical lock | |
| Doors on Door | 3 nos – Sliding Grills G+2 | |
| Limit Switch | Provided for Lift Shop | |
| Door Interlocks | Interlocks for Grill Door | |
| Installion & Commissioning – Customers Scope – Extra civil work as per drawing, loading unloading at site, welding arrangements with welder, wiring upto control panel, site coordination, permissions, site activities, beyond NIDO’s control, any extra structural work, civil or fabrication support to lift if required. | ||
| Vimal Scope – Supply of civil, final goods lift drawing, supply of machinery as per drawing and specs, commissioning, installation, powerpack to control panel wiring connections, hydraulic fitting, operation and training. | ||

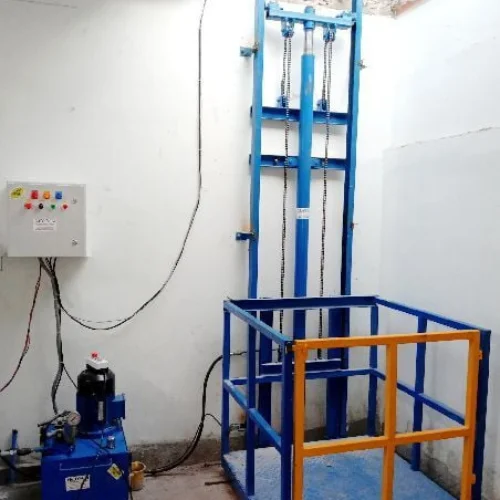

| Model | VI-GL-HDM | |
| UDL Capacity | kg | upto 2000 |
| Cabin Size (Outer) (W*D*H) | mm | 1150*1800*1900 |
| Lift Height | mm | 4800 |
| Lowered Height | mm | 200 |
| Travel Height | mm | 5000 |
| Cabin | Cabin size as above. Fully closed with MS sheet, one width side collapsible door with limit switch interlocking. | |
| Power Supply | 415VAC, 3Ph, 50Hz | |
| Loading/Unloading | mm | From 1150mm at ground, unloading at same side 1st floor at 4800 mm |
| No. of Stops | G+1 | |
| Overall Space Required | mm | 1600*1850 |
| Motor Rating | HP | 3 |
| Power Pack Location | Outside of the platform, nearerst to the equipment | |
| Lifting Speed | mm/s | 50-60 |
| Color of the Equipment | Golden Yellow, RAL 1003 | |
| Self Weight | kg | 1200 |
| Other Technical Details | ||
| A.Mechanical | ||
| 1. Constructed in good quality robust steel | ||
| 2. MS Checkered platform | ||
| 3. Mechanical Stopper with rest pad provided | ||
| B. Hydraulic Component | ||
| Component | Make | |
| Hydraulic Tank, Cylinder, Hose Burst Valve | Vimal | |
| Solenoid Valve, Manifold Block | Hydac | |
| Gear Pump | Dowty | |
| Suction Strainer / Return Line Filter | Hydroline | |
| Bell Housing / Coupling | Hyzen | |
| Pressure Gauge / Oil Level Indicator | Wika/Hydroline | |
| Hydrulic Hoses-Maximum 3 mtr long | Sony/Parker | |
| Fittings | Standard | |
| C. Electrical Component: (Applicable for Electro-Hydraulic Component Only) | ||
| Components | Make | |
| Electric Motor | Siemens/ABB/CG | |
| Contactor/Over Load Relays | Siemens/BCH/TC | |
| MCB/MPCB/Indicators | Siemens | |
| Panel Box | Vimal | |
| Push Buttons/Limit Switches | Teknik | |
| Fittings | Standard | |
| Cables – Maximum 5 mtrs long | Polycab/Avanti | |
| Connectors | Phoenix/Connectwell/Elemek | |
