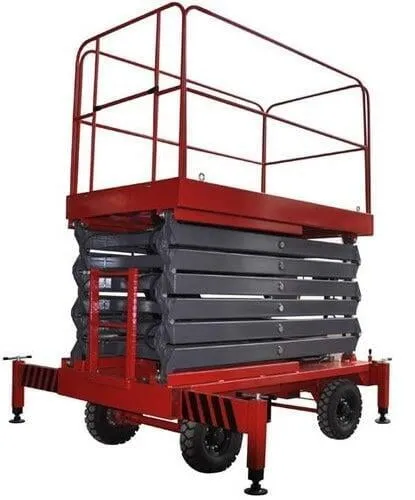

Mobile Scissor Lift
Model Number : VI-SL-M-0.5-4.5 AC, VI-SL-M-0.5-6 AC, VI-SL-M0.5-7.5 AC, VI-SL-M-0.5-9 AC, VI-SL-M-0.5-11 AC, VI-SL-M-0.5-12 AC, VI-SL-M-0.5-14 AC, VI-SL-M-0.3-16 AC
HSN Code : 84289090
Stock: In-Stock
Main Specs : 500 Kg Capacity, platform height upto 16 mtr, movement manual, lifting battery operated, emergency stop button
Equipment Details
Vimal mobile scissor lift adopts scissor type mechanic structure to bring high stability after being elevated. Wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.
Load capacity: 240 kg, Platform Height: 3.9 mtr, Pedal lock, electric cabinet, foldable platform, emergency stop button, interlock platform door
Vimal mini scissor lift can balance itself and walk on an even keel uneven ground. Mini mobile scissor lifts are also called as mini electric scissor lifts or electric elevated work platform. They are used to provide temporary access to contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.
Standard Features
- DC power supply
- Battery charge indicator
- Self-lock gate on platform
- Leveling indicator
- Safety bracket-dual locking castors
- Emergency stop button
Optional Features
- AC power supply to platform
- Platform extension
- Automatic braking system
- Beacon light on platform
- Overloading sensor
- Emergency lowering system
- Forklift pockets
- Folding guardrails
- Cylinder holding valve
- Selection switch – top/bottom
- Emergency stop – protection arm for service
- Lock for towing handle

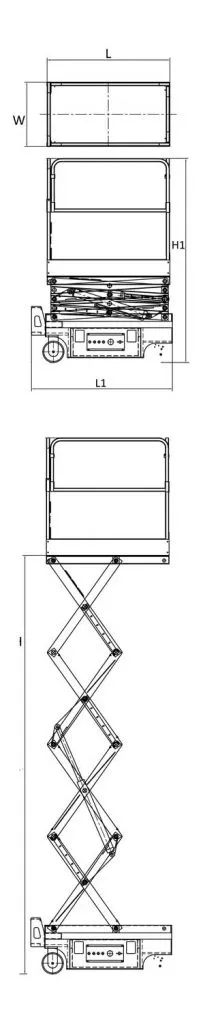

| Model | VI-SL-M-0.24-3 DC | VI-SL-M-0.24-3.9 DC | |
|---|---|---|---|
| S.W.L. | kg | 240 | 240 |
| Platform Height Max. | mtr | 3 | 3.9 |
| Stowed Length | mtr | 1.3 | 1.3 |
| Stowed Width | mtr | 0.76 | 0.76 |
| Stowed Height (Rails Up) | mtr | 1.83 | 1.92 |
| Stowed Height (Rails Down) | mtr | 1.43 | 1.52 |
| Platform Size (L*W) | mtr | 1.15*0.07 | 1.15*0.07 |
| Wheelbase | mtr | 0.99 | 0.99 |
| Max. Workers Number | 1 | 1 | |
| Ground Clearance | mtr | 0.06 | 0.06 |
| Raise/Lower Time | sec | 34/20 | 34/21 |
| Tire | in | 6 | 6 |
| Lifting Motor | v/kh | 12/0.8 | 12/0.8 |
| Power Source | V/Ah | 12/85 V/Ah | 12/85 V/Ah |
| Charger | V/A | 15 V/A | 15 V/A |
| Weight | 482 | 516 |
Load capacity: 500 kg, Platform Height: upto 16 mtr, Movement Manual, Lifting Battery Operated
Standard mobile scissor lifts are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.
| Model | VI-2500-1150-550-85X | VI-2500-1220-685-85X | |
|---|---|---|---|
| Capacity | kg | 2500 | 2500 |
| Pump Type | Intergrated | Intergrated | |
| Wheel (drive/load) Type | Nylon | Nylon | |
| Size of Steering Wheel | mm | ￠180*50 | ￠180*50 |
| Size of Loading Wheel (single wheel) | mm | ￠80*93 | ￠80*93 |
| Size of Loading Wheel (double wheel) | mm | ￠80*70 | ￠80*70 |
| Lifting Height | mm | 115 | 115 |
| Max. Fork Lifting Height | mm | 200 | 200 |
| Lowered Height of Fork | mm | 85 | 85 |
| Fork Outside Distance | mm | 550 | 685 |
| Fork Length | mm | 1150 | 1220 |
| Fork Width | mm | 160 | 160 |
| Steel Thickness (after painting) | mm | 3 | 4 |
| Weight | kg | 59.5-62.5 | 66.8-71 |
HEAVY DUTY MOBILE SCISSOR LIFT
Standard mobile scissor lifts are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. Made of high strength and high quality manganese steel, it is durable and durable
Smooth movements, low noise, can work in harsh environments. The hinge points are optimized by computer to make it in the best position. Between the fork between the hinge with oil-free bearings or grease nipples to ensure that the device itself good self lubricating. Scissor-type lifting structure, after lifting a higher stability. Large working platform and high carrying capacity, so that a wider range of high-altitude operations, more efficient, more secure security. Steering chassis design coupled with rubber inflatable wheel, easy to move and flexible. Power supply voltage selection AC industrial electricity AC380V
Load capacity: 1000 kg, Platform Height: upto 12 mtr, Movement Manual, Lifting Battery Operated
| Model | VI-SL-M-0.5-6 AC | VI-SL-M-0.5-7.5 AC | VI-SL-M-0.5-9 AC | VI-SL-M-0.5-11 AC | VI-SL-M-0.5-12 AC | VI-SL-M-0.5-14 AC | VI-SL-M-0.3-16 AC | |
|---|---|---|---|---|---|---|---|---|
| S.W.L. on Extension | kg | 500 | 500 | 500 | 500 | 500 | 500 | 300 |
| Platform Height Max. | mtr | 6 | 7.5 | 9 | 11 | 12 | 14 | 16 |
| Platform Size (L*W) | mtr | 1.85*0.88 | 1.8*1.00 | 1.8*1.00 | 2.1*1.15 | 2.45*1.35 | 2.45*1.35 | 2.75*1.5 |
| Overall Length | mtr | 1.9 | 1.85 | 1.85 | 2.25 | 2.15 | 2.15 | 2.75 |
| Overall Width | mtr | 1.12 | 1.24 | 1.24 | 1.59 | 1.59 | 1.59 | 1.74 |
| Overall Height | mtr | 0.75 | 1.5 | 1.65 | 1.85 | 1.85 | 2 | 2 |
| Lifting Time | sec | 54 | 72 | 80 | 88 | 90 | 120 | 130 |
| Motor Power | kw | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 3 | 3 |
| Power Voltage | V | AC 330 | AC 330 | AC 330 | AC 330 | AC 330 | AC 330 | AC 330 |
| Weight | kg | 650 | 1100 | 1260 | 1380 | 1850 | 2150 | 2680 |
| Tyre | ⌀200 Polyurethane | ⌀400-8 Pneumatic Tyre | ⌀400-8 Pneumatic Tyre | ⌀500-8 Pneutmatic Tyre | ⌀500-8 Pneutmatic Tyre | ⌀500-8 Pneutmatic Tyre | ⌀500-8 Pneutmatic Tyre | |
| Driving Motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.2 | 1.2 |
| Lifting Motor | kw | 2.2 | 2.2 | 2.2 | 3 | 3 | 2.3 | 2.3 |
| Power Source | Ah | 120*2 | 120*2 | 120*2 | 150*2 | 200*2 | 150*4 | 150*4 |
| Charger | v/Ah | 15-Apr | 24/15 | 24/15 | 24/15 | 24/15 | 15-Apr | 24/15 |
| Overall Size | mtr | 1.95*1.08*1.1 | 1.95*1.2*1.54 | 1.95*1.2*1.68 | 2.25*1.35*1.7 | 2.5*1.55*1.88 | 2.5*1.55*2 | 2.85*1.75*2.1 |
